Billet Automotive Buttons

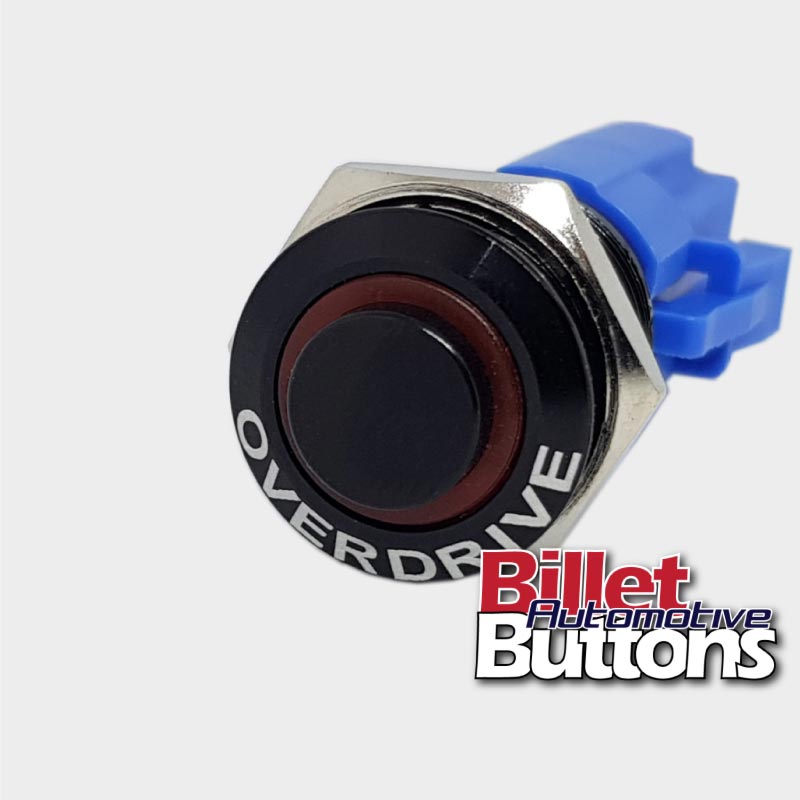

16mm 'OVERDRIVE' Push Button Switch Raised Top LED Small

$ 27.95
$ 27.95

Product Description

16mm LED raised top billet buttons

    16mm raised top LED push buttons, nice and compact good for bikes, car shifters & steering wheels or even if space is limited on your dash etc.

    Button case material:

    • Black finish: Nickel Plated.
    • Stainless finish: Stainless Steel.

    Button push operation:

    • Latching: Push for on, then push again for off.
    • Momentary: Only active when your finger is held on the button.

    Specifications:

    • Depth inc contacts: 33mm
    • Head diameter: 18mm
    • Actual push button diameter: 9mm
    • Hole size required to fit: 16mm
    • Maximium panel thickness for install: 11mm
    • Switch rating: 5Amp
    • Led voltage: 12 Volt
    • Degree of Protection: IP65
