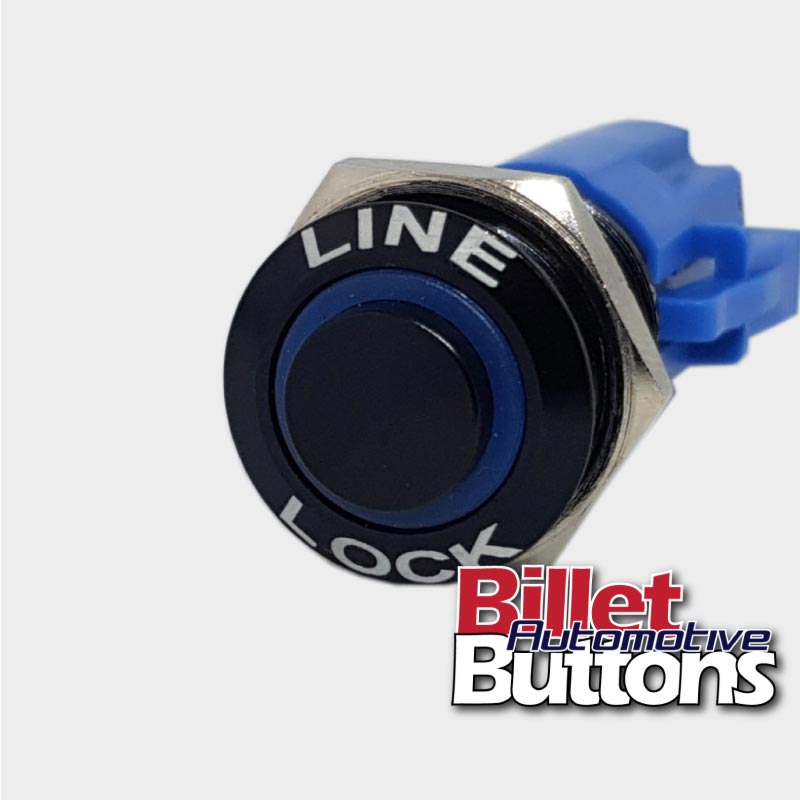

16mm 'LINE LOCK' Push Button Switch Raised Top LED Small
16mm LED raised top billet buttons
16mm raised top LED push buttons, nice and compact good for bikes, car shifters & steering wheels or even if space is limited on your dash etc.
Button case material:
- Black finish: Nickel Plated.

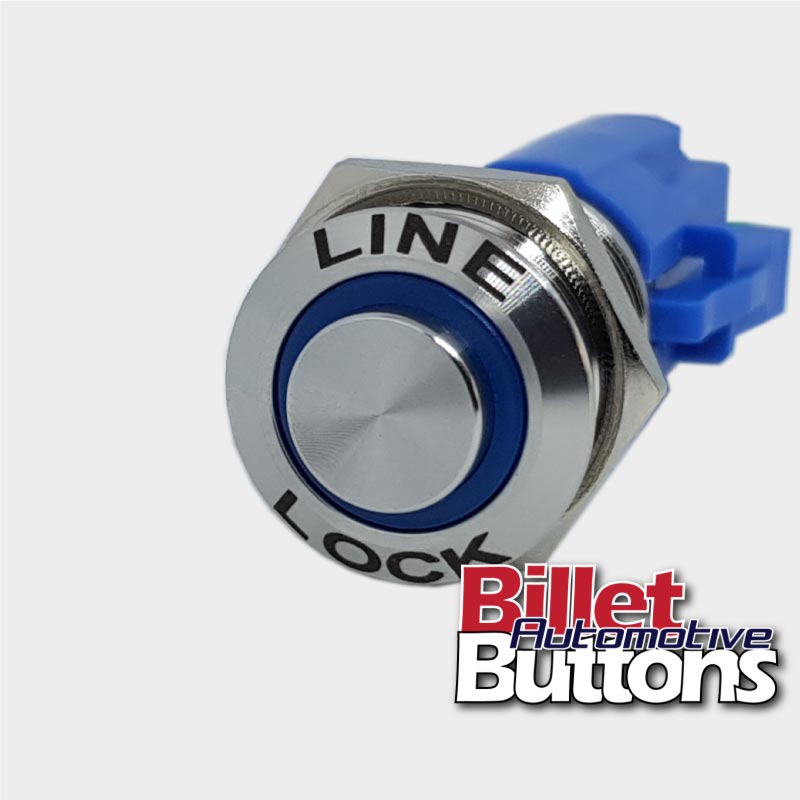

- Stainless finish: Stainless Steel.
Button push operation:
- Latching: Push for on, then push again for off.
- Momentary: Only active when your finger is held on the button.
- Depth inc contacts: 33mm
- Head diameter: 18mm
- Actual push button diameter: 9mm
- Hole size required to fit: 16mm
- Maximium panel thickness for install: 11mm
- Switch rating: 5Amp
- Led voltage: 12 Volt
- Degree of Protection: IP65
