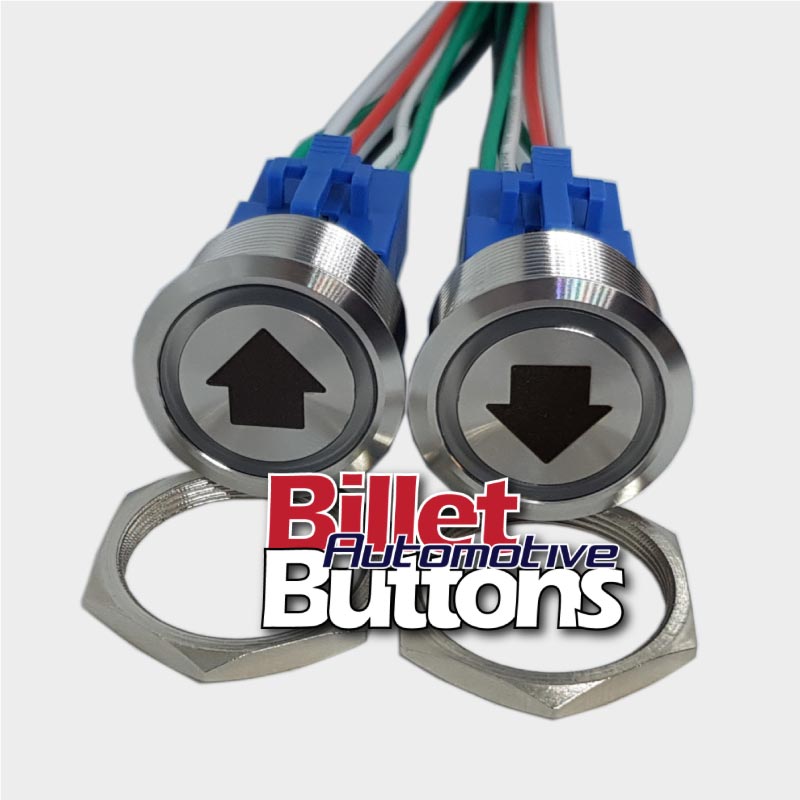

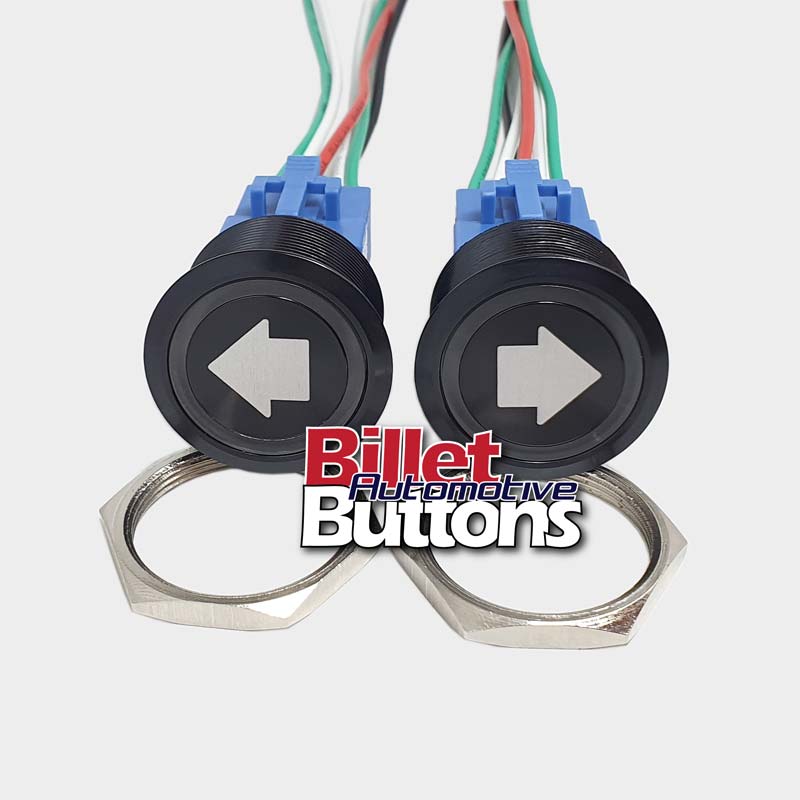

28mm laser etched billet buttons

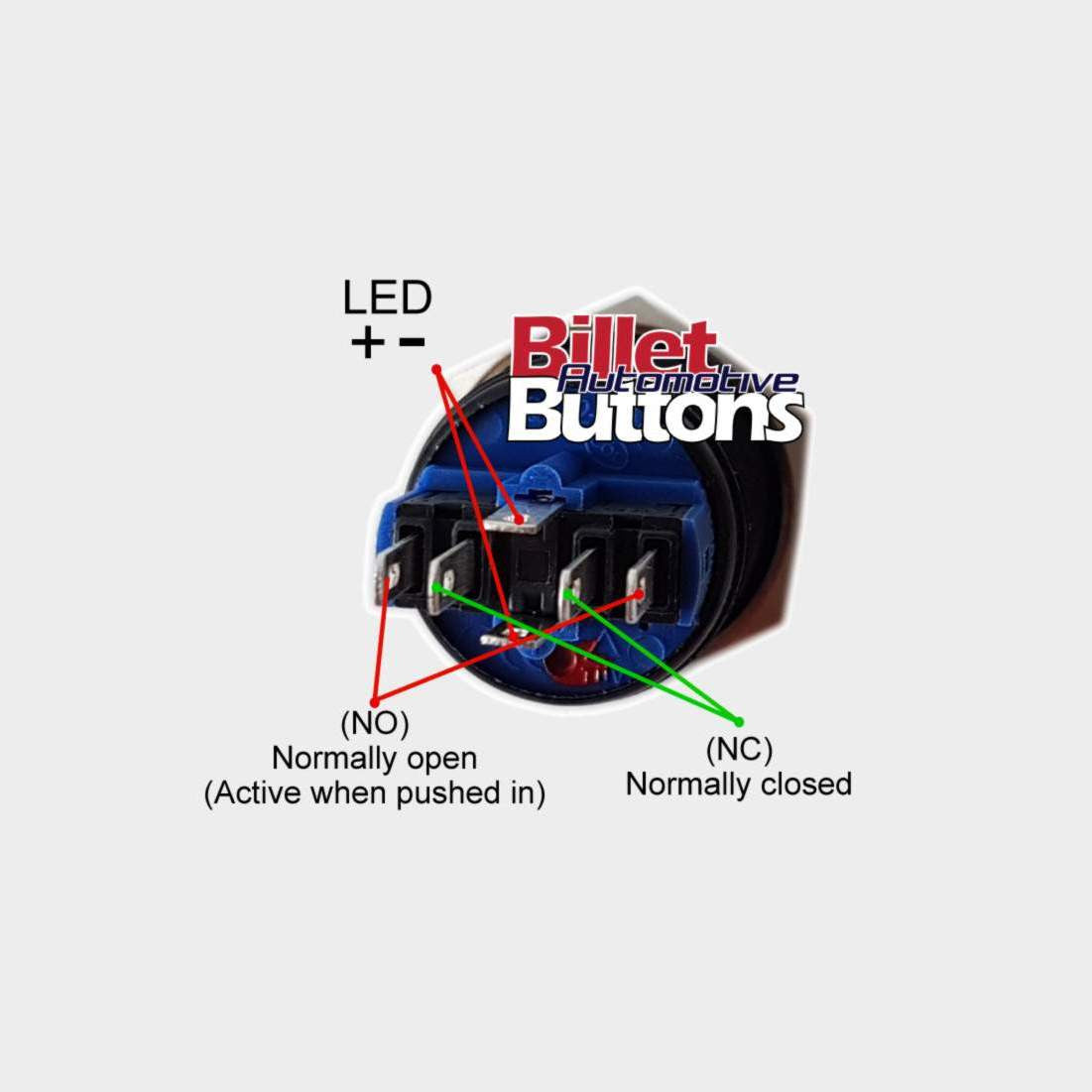

Matching pair of buttons included in this sale. Made to order laser etched billet buttons are fitted with an LED that can be wired so that it is active when the button is pushed in or when the headlights or ignition are on. All the 28mm billet buttons have an IP67 water and dust resistant rating. These are suitable for many applications such as cars, marine and motor homes etc. *I recommend running a relay with these buttons on any high draw accessories as they are rated at 5A.
Button case material:
- Black finish: Nickel Plated.
- Stainless finish: Stainless Steel.
Button push operation:
- Latching: Push for on, then push again for off.
- Momentary: Only active when your finger is held on the button.
- Depth inc contacts: 42mm
- Head diameter: 31.5mm
- Actual push button diameter: 25mm inc LED
- Hole size required to fit: 28mm
- Maximum panel thickness for install: 10mm*
- Switch rating: 5Amp
- Led voltage: 12 Volt
- Degree of Protection: IP67
