19mm 3 Way Switch ON-OFF-ON Style With LED Harness Included

Product Code: 19SBLTURN

Availability:In stock

$ 24.95 24.95

Available Options

Qty

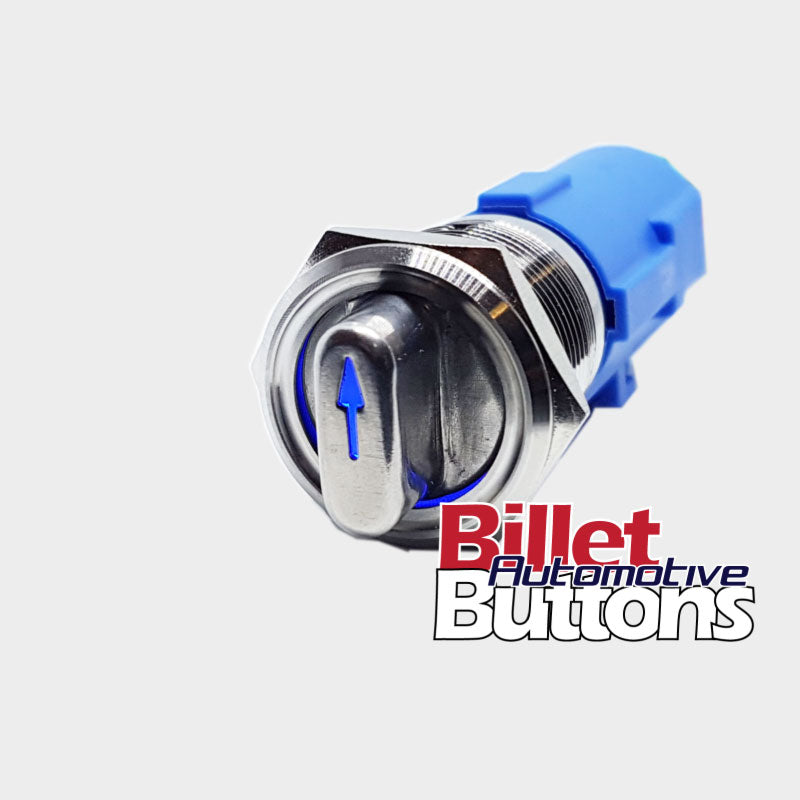

19mm 3 way turn switch with LED ON-OFF-ON style

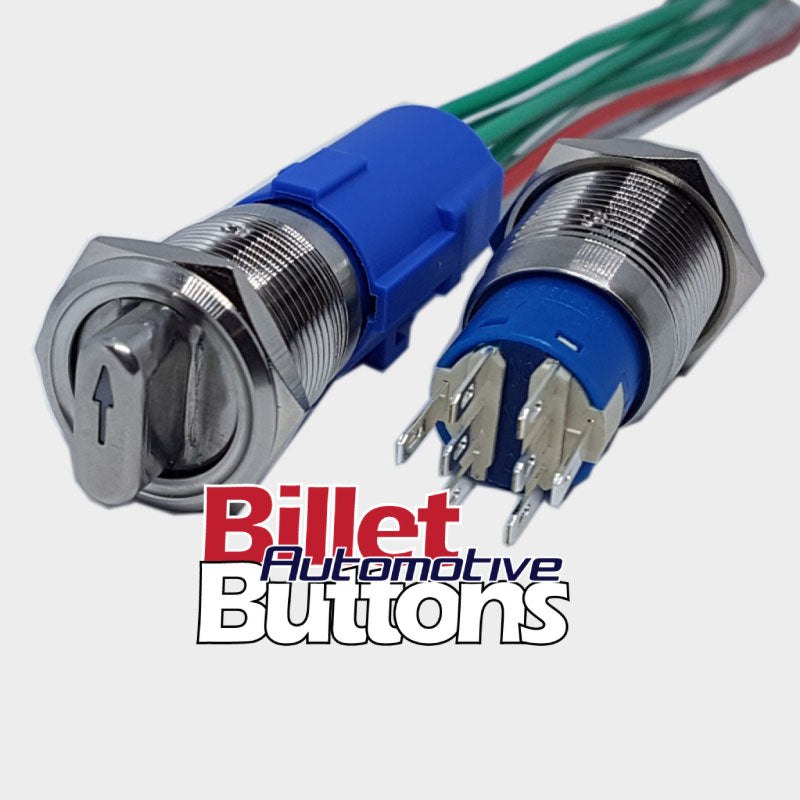

These turn switches work similar to the 19mm buttons I sell but being a ON-OFF-ON style of switch. Each side of the switch has a COM/NO/NC circuit so can be wired a few different ways with relays to suit 2 speed fans and wipers. All the 19mm billet buttons have an IP65 water and dust resistant rating and each button comes with a plug in harness for easy wiring. These are suitable for many applications such as cars, marine and motor homes etc. *I recommend running a relay with these buttons on any high draw accessories as they are rated at 5A.

Button case material:

  • Black finish: Not Available.
  • Stainless finish: Stainless Steel.

Button turn operation:

  • Latching: Holds position when turned.
  • Momentary: Not Available.

Specifications:

  • Depth inc contacts: 35mm (50mm with harness plug)
  • Head diameter: 22mm
  • Actual push button diameter: 13mm
  • Hole size required to fit: 19mm
  • Maximium panel thickness for install: 10mm*
  • Switch rating: 5Amp
  • Led voltage: 12 Volt
  • Degree of Protection: IP65
