19mm 'CRUISE CONTROL SET' Billet Push Button Switches Car Universal

Product Code: 19BBBL

Availability:In stock

$ 75.00 75.00

Available Options

Qty

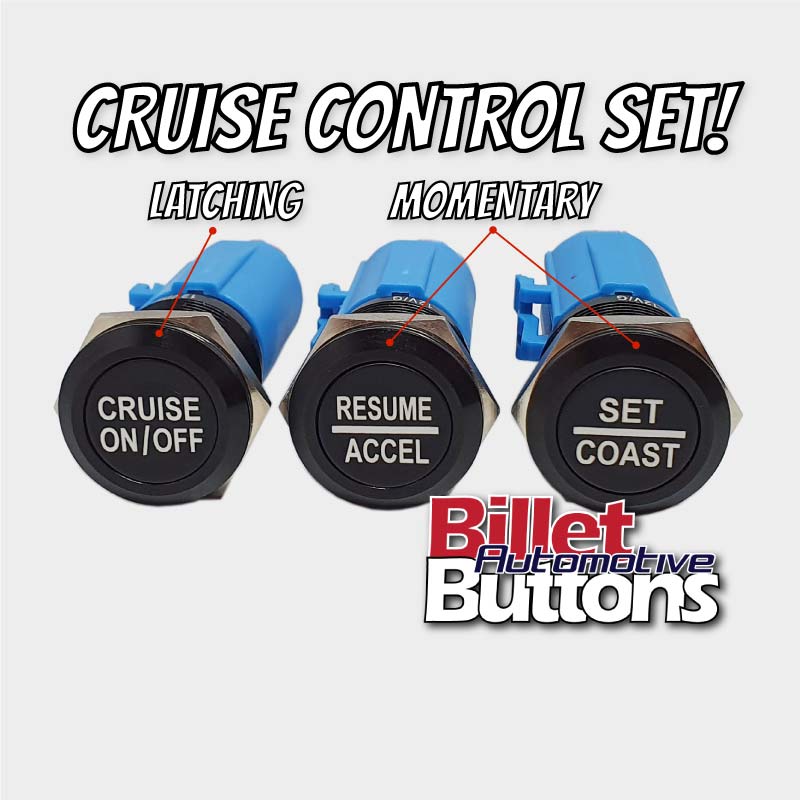

Set of 3x 19mm laser etched billet buttons with harness plugs included as shown - latching cruise on/off button & momentary resume/accel - set/coast buttons. (These are a D.I.Y switch set for replacing old switches and buttons on pre-existing cruise control setups)

Made to order laser etched billet buttons are fitted with an LED that can be wired so that it is active when the button is pushed in or when the headlights or ignition are on. All the 19mm billet buttons have an IP65 water and dust resistant rating and each button comes with a plug in harness for easy wiring. These are suitable for many applications such as cars, marine and motor homes etc.

Button type:

  • Black backlit: Nickel plated shell, LED back-lit etching. (only the etching on the center of the button is back-lit) 5amp rated SPDT switch
  • Black halo finish: Nickel plated, LED halo. 5amp rated SPDT switch
  • Stainless halo finish: Stainless steel, LED halo. 5amp rated SPDT switch

Button push operation:

  • Latching: Push for on, then push again for off.
  • Momentary: Only active when your finger is held on the button.

Specifications:

  • Depth of switch inc contacts: 35mm (50mm with harness plug)
  • Face diameter: 22mm
  • Hole size required to fit: 19mm
  • Maximium panel thickness for install: 10mm*
  • Switch rating: 5Amp
  • Led voltage: 12 Volt
  • Degree of Protection: IP65
