Billet Automotive Buttons

19mm 'FUEL PUMP' Billet Push Button Switch

$ 29.95 AUD

19mm laser etched billet button with harness plug included

*We now sell a high current 19mm 16A button, please note that the stainless halo and the black halo high current buttons look slightly different then the photos shown. If buying a set of these buttons we recommend sticking to the same amp rating so all switches match.
Made to order laser etched billet buttons are fitted with an LED that can be wired so that it is active when the button is pushed in or when the headlights or ignition are on. All the 19mm billet buttons have an IP65 water and dust resistant rating and each button comes with a plug in harness for easy wiring. These are suitable for many applications such as cars, marine and motor homes etc.

Button type:

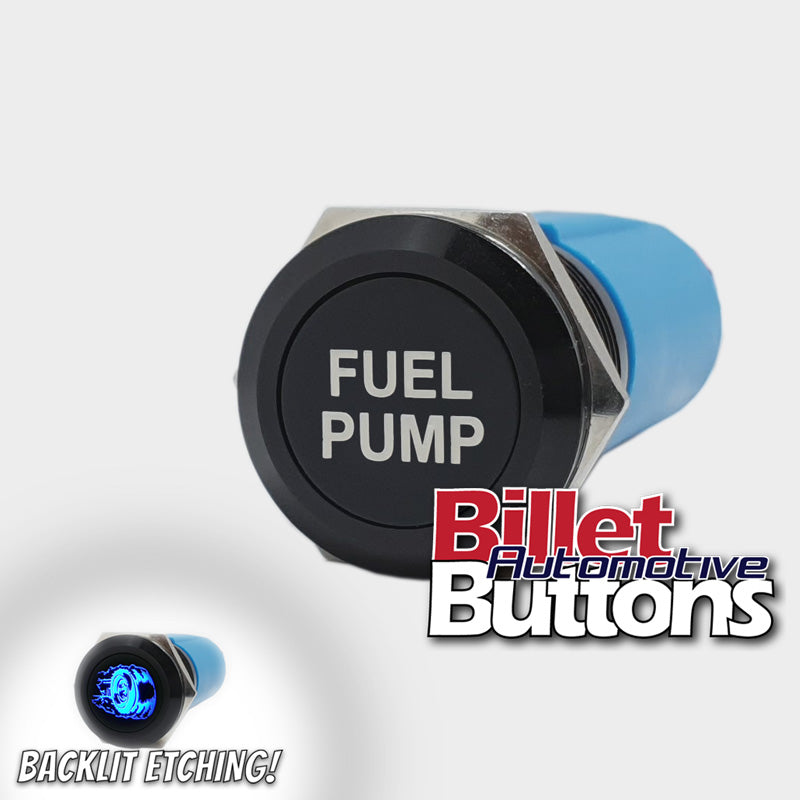

  • Black backlit: Nickel plated shell, LED back-lit etching. (only the etching on the center of the button is back-lit) 5amp rated SPDT switch

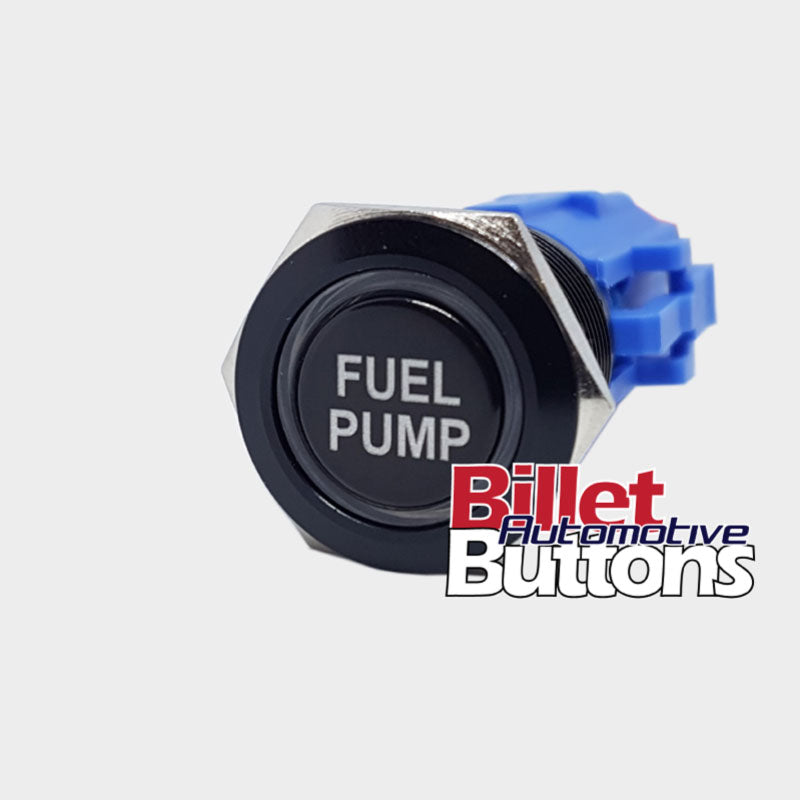

  • Black halo finish: Nickel plated, LED halo. 5amp rated SPDT switch

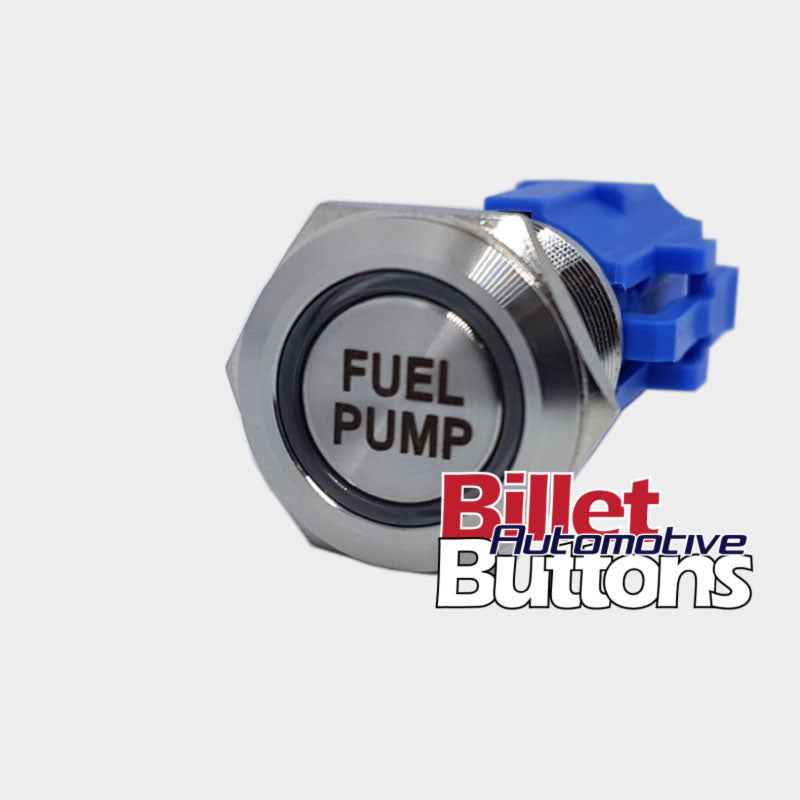

  • Stainless halo finish: Stainless steel, LED halo. 5amp rated SPDT switch
  • Black backlit 16A: Nickel plated shell, LED back-lit etching. (only the etching on the center of the button is back-lit) 16amp rated SPST switch
  • Black halo finish 16A: Nickel plated, LED halo. 16amp rated SPST switch
  • Stainless halo finish 16A: Stainless steel, LED halo. 16amp rated SPST switch

Button push operation:

  • Latching: Push for on, then push again for off.
  • Momentary: Only active when your finger is held on the button.

Specifications:

  • Depth of switch inc contacts: 35mm (50mm with harness plug)
  • Face diameter: 22mm
  • Hole size required to fit: 19mm
  • Maximium panel thickness for install: 10mm*
  • Switch rating: 5Amp / 16Amp
  • Led voltage: 12 Volt
  • Degree of Protection: IP65
