19mm Pair 'CUT-OUT OPEN/CLOSE' Billet Push Buttons Switches Electric Exhaust Cutouts

Product Code: 19BBM

Availability:In stock

$ 49.95 49.95

Available Options

Qty

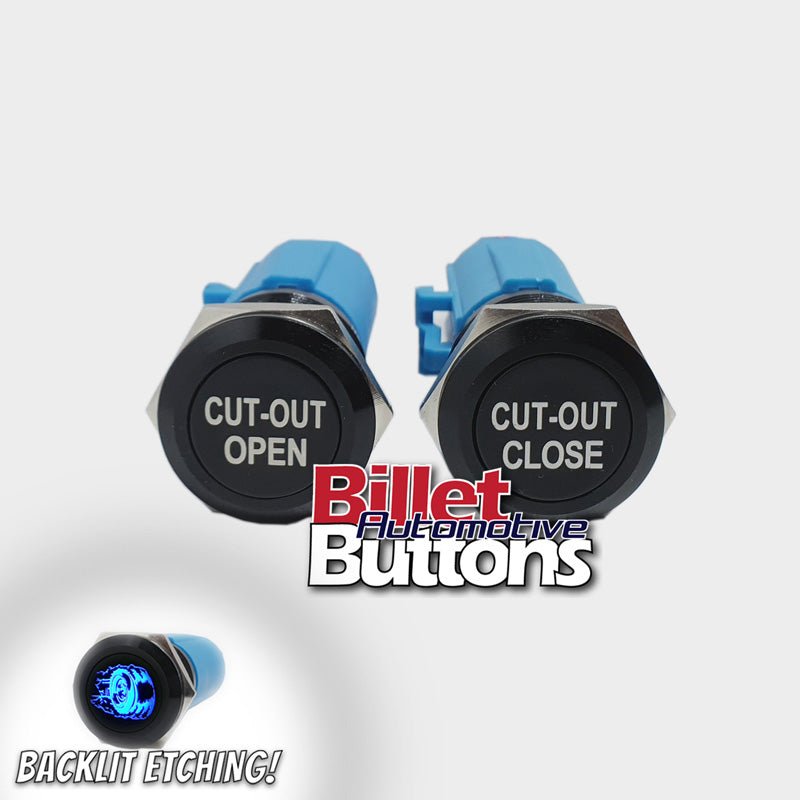

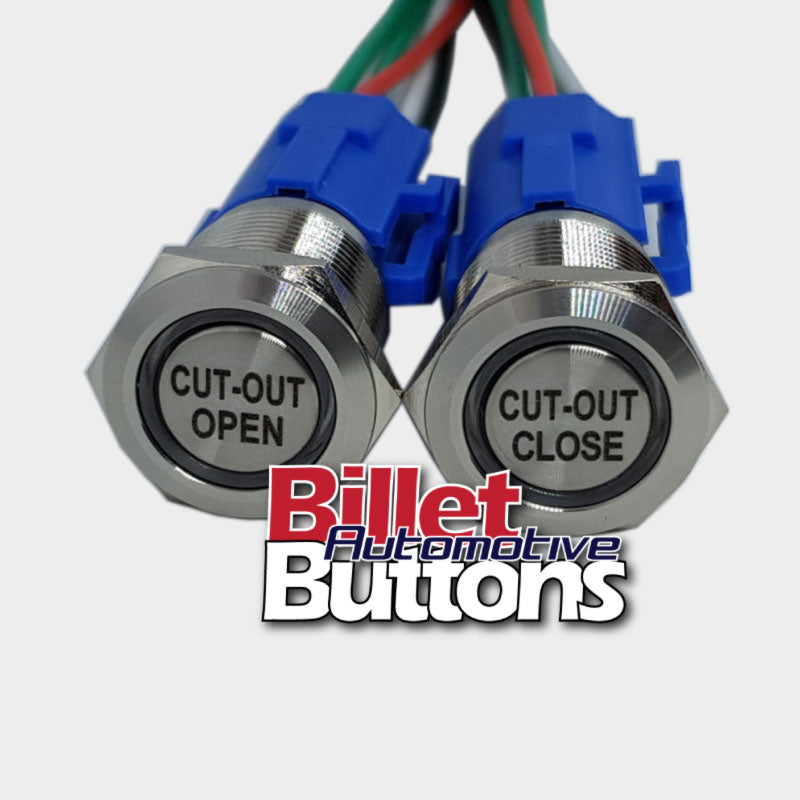

19mm laser etched billet buttons

Matching pair of buttons included in this sale. *Please note most exhaust cutouts need reverse polarity to open and close, the best way for this is a dpdt relay or 2x 5pin relays in conjunction with these switches. Made to order laser etched billet buttons are fitted with an LED that can be wired so that it is active when the button is pushed in or when the headlights or ignition are on. All the 19mm billet buttons have an IP65 water and dust resistant rating and each button comes with a plug in harness for easy wiring. These are suitable for many applications such as cars, marine and motor homes etc. *I recommend running a relay with these buttons on any high draw accessories as they are rated at 5A, Click Here for mounting plate to suit.

Button case material:

  • Black finish: Nickel Plated.
  • Stainless finish: Stainless Steel.

Button push operation:

  • Latching: Push for on, then push again for off.
  • Momentary: Only active when your finger is held on the button.

Specifications:

  • Depth inc contacts: 35mm (50mm with harness plug)
  • Head diameter: 22mm
  • Actual push button diameter: 13mm
  • Hole size required to fit: 19mm
  • Maximium panel thickness for install: 10mm*
  • Switch rating: 5Amp
  • Led voltage: 12 Volt
  • Degree of Protection: IP65

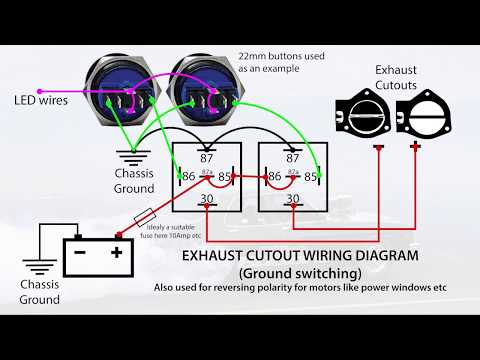

    Billet button wiring diagrams
