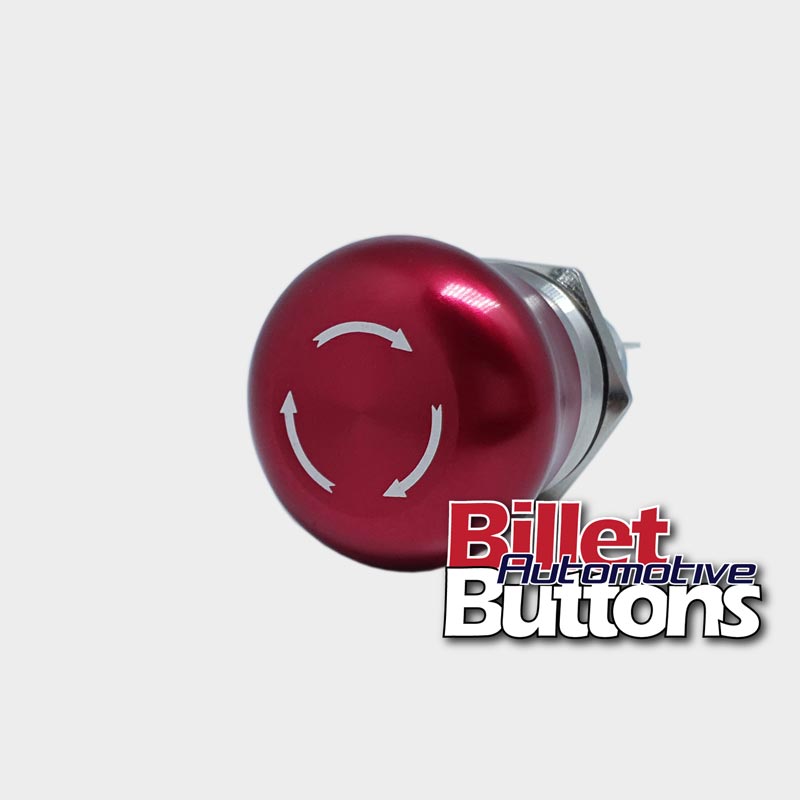

22mm Emergency Stop Mushroom Light Duty

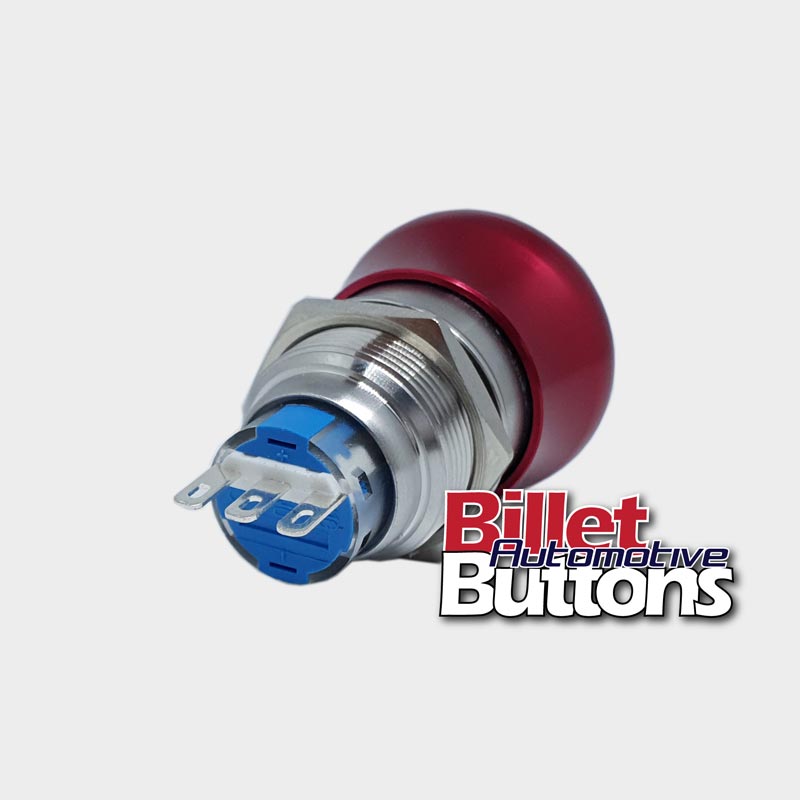

These do not come with a harness plug and will require wires to be soldered to the terminals and are more suited for light duty applications. The 22mm emergency stop mushroom's also have the same wiring diagram as the 19mm buttons but without the led. *I recommend running a relay with these buttons on any high draw accessories as they are rated at 5A.
Button case material:
-
Stainless case: Red anodized mushroom.
Button push operation:
-
Latching: Push for off, then twist for on.
Specifications:
- Depth inc contacts: 52mm
- Head diameter: 31mm
- Hole size required to fit: 22mm
- Maximum panel thickness for install: 5-6mm
- Switch rating: 5Amp
- Degree of Protection: IP65
