Billet Roll Cage Bar Mount Switch Box for Billet Buttons

$ 239.95 AUD

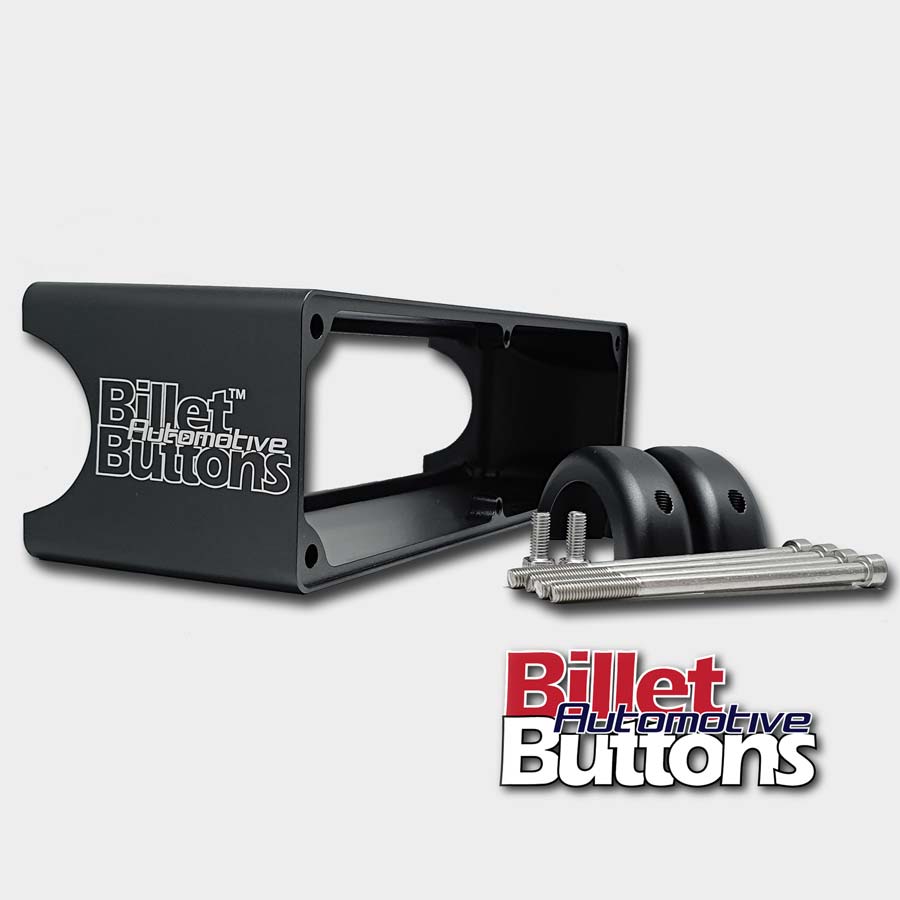

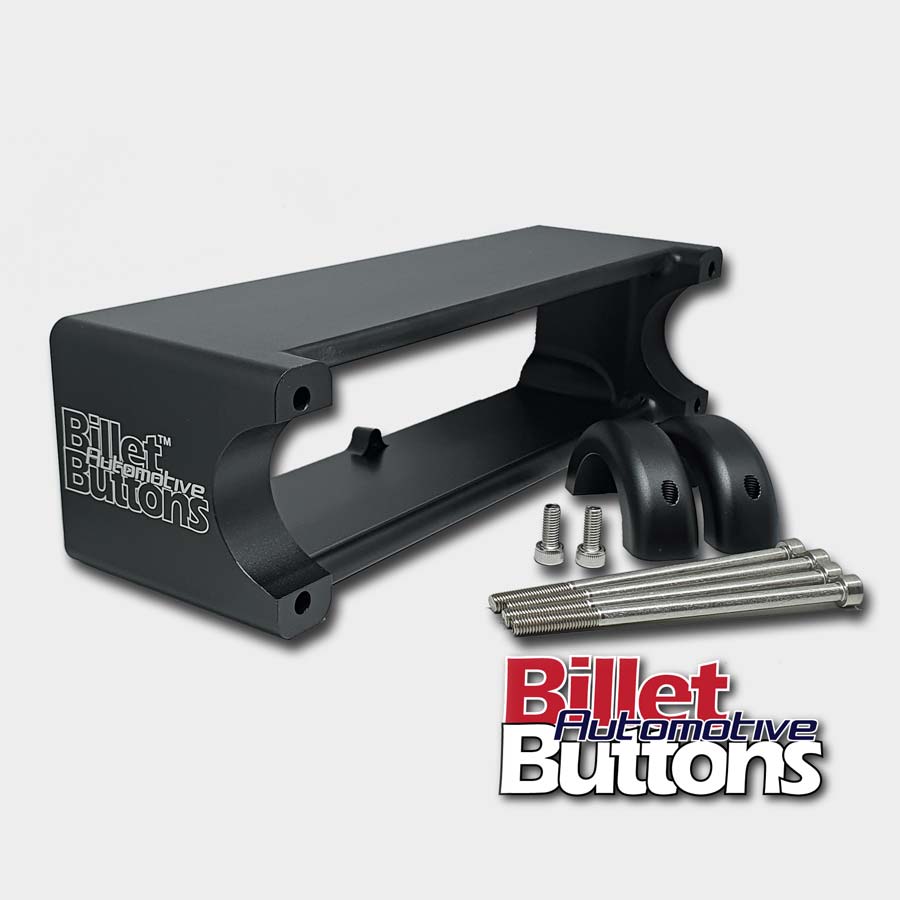

Billet aluminium roll cage bar mount switch box

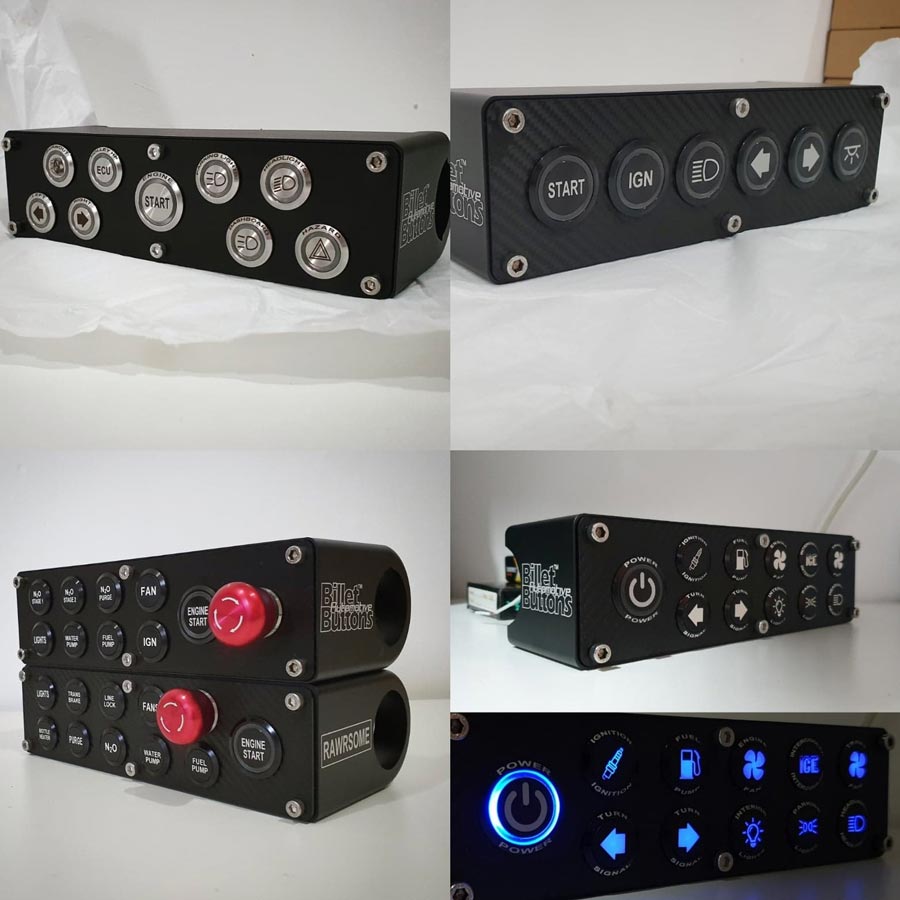

Billet aluminium boxes designed to bolt to roll cage bar these are anodized black and thoughtfully designed in house as a great universal box to house various switches. We have a few generic popular face plate designs listed and we can also laser cut one to suit your needs they can fit a maximium of 12x 22mm buttons. We have three designs for the most common bar sizes 1 1/2" (38mm), 1 5/8" (42mm) and 1 3/4" (45mm). Boxes will have my logo on either end of the box like pictured! Switches sold separate!

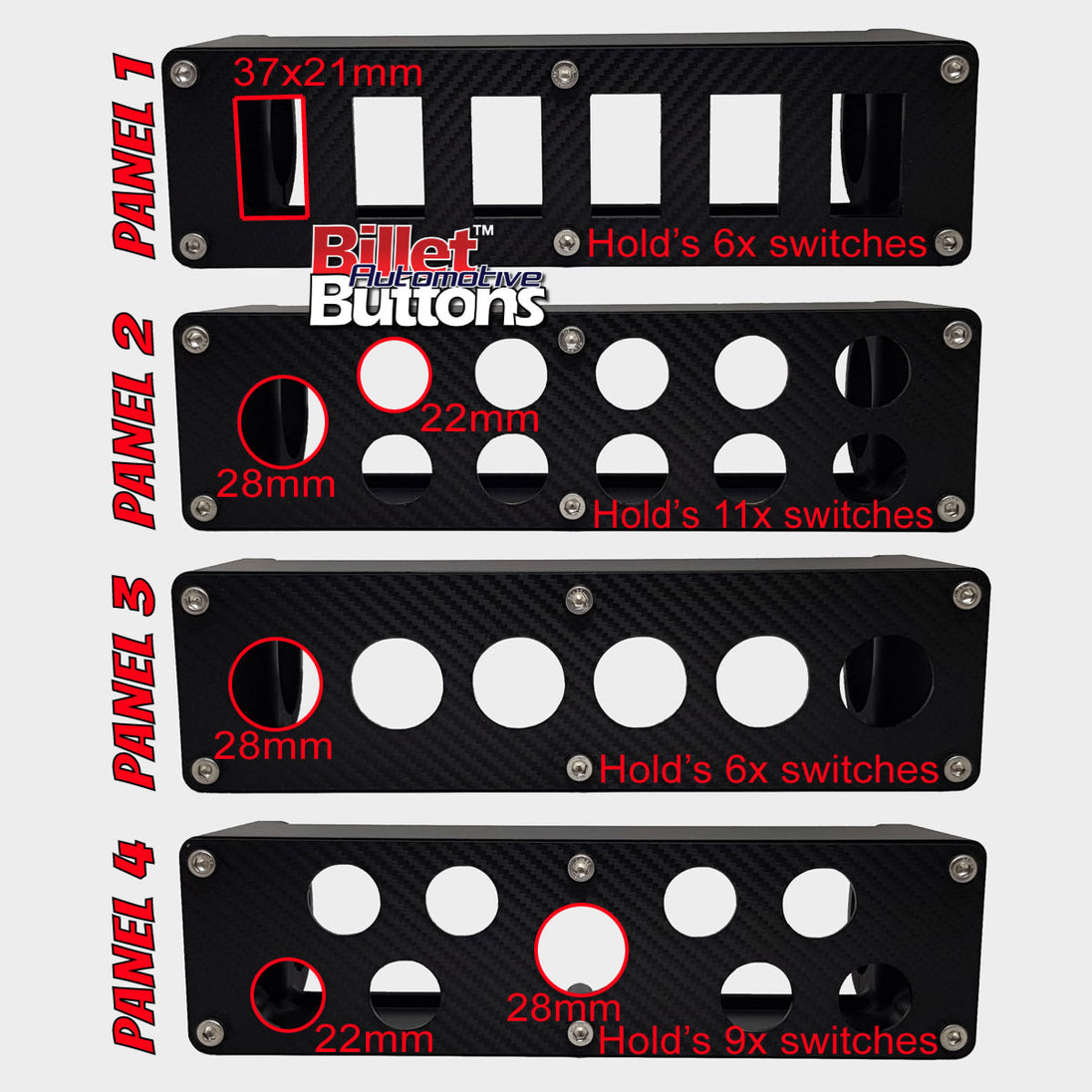

Faceplate Design:

      • Panel 1: 6x rectangle narva/carling style switches.
      • Panel 2: 10x 22mm buttons, 1x 28mm button.
      • Panel 3: 6x 28mm buttons.
      • Panel 4: 8x 22mm buttons, 1x 28mm button.
      • Panel 5: Custom (no extra charge just leave me a note or send me a message on layout).

      Face-plate material:

      • Carbon fiber: 3mm thick carbon fiber wrapped acrylic.
      • Satin black: 3.2mm thick modified acrylic.
      • Brushed aluminium: 3.2mm 2ply acrylic laminate.

        Roll bar mounting tube size:

        • 1 1/2" (38mm)
        • 1 5/8" (42mm)
        • 1 3/4" (45mm)

        Specifications:

        • Box material: Billet aluminium sand blasted and hard anodized.
        • Faceplate material: Acrylic / Plastic
        • Dimensions: W245xH68xD80mm / W9.6"xH2.7"xD3.1" (D80mm / D3.1" deep measured from center of roll cage tube).
        • Stainless bolts and nuts included.
